Product Description:

FR4 TG170 Prototype PCB, 4 Layers ENIG Board, PCB Manufacturing for Israel

Share Us

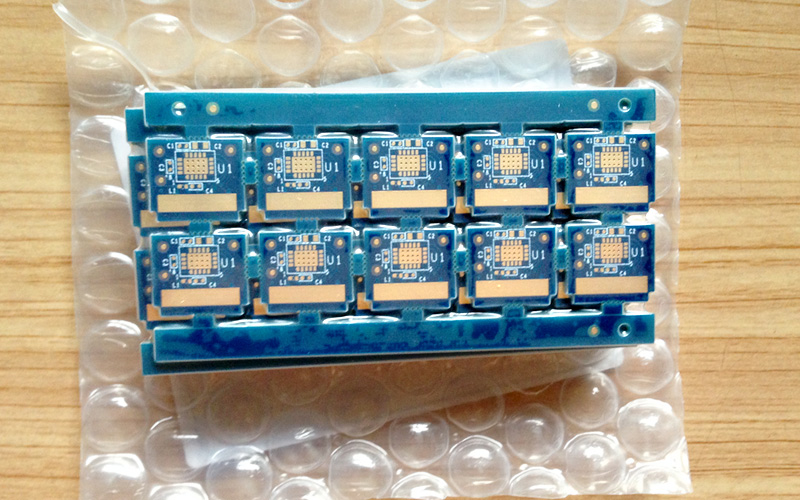

FR4 TG170 Prototype PCB, 4 Layers ENIG Board, PCB Manufacturing for Israel

PCB Product Description:

> Layer Count:     4 Layers PCB
> Quantity:      10panels(100pcs) boards
> PCB Board Size:  79.15 * 40.88mm
> PCB Material:    FR4  TG 170
> Board Thickness:   1.4 mm
> Copper Thickness:  1OZ
> Surface Finish:   Immersion gold PCB
> Solder Mask:    Blue Solder Mask
> Silkscreen:      White screen (top&bot)
> Min drill/pad:    0.2mm/ 0.4mm
> Other:  TG170 / 1.4mm thickness board
> Delivery Time:   7 days
> Place of destination: Israel
> Certification:      UL , RoHS, ISO9001,
                             ISO14001, TS16949




PCB File Format

> PCB quote and Manufacture from standard Gerber files.
   There are so many different versions of PCB files today, in order to avoid version conflicts,
   please provide us with Gerber RS-274-X format files,
   that will greatly help during we use CAM350 quote and PCB fabrication.

> EastPCB accept Altium, Protel design files for quotation only.
   please exporting Gerber files for PCB Manufacturing.
   A full set PCB files include Gerber files, NC drill files and outline files.

> Important information not often easily identifiable in the gerber files,
   it is kindly have a simple text file that explaining your quotation requirement,
   such as PCB Material, surface finished, board thickness, copper weight, layer stackup and so on.

> Attached all of gerber files and text in a zip format,
   and name the files so that we can find them easily next time.
