Product Description:

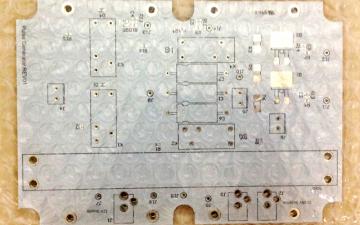

FR4 GT170 PCB, White Solder Mask Double Sided Prototype Board

Share Us

FR4 GT170 PCB, White Solder Mask Double Sided Prototype Board

PCB Product Description:
> Layer Count:     2 Layers PCB
> Quantity:        4pcs Prototype PCB
> PCB Board Size:  165.1 * 114.3mm
> PCB Material:     FR4 GT170
> Board Thickness:   1.6 mm
> Copper Thickness:  1OZ
> Surface Finish:   Lead Free PCB
> Solder Mask:    White Solder Mask
> Silkscreen:      Black screen (top&bot)
> Min drill/pad:    0.7mm/ 1.5mm
> Delivery Time:   8 days
> Place of destination: USA
> Certification:      UL , RoHS, ISO9001,
                             ISO14001, TS16949
How to get PCB from EastPCB:
PCB Manufacturing is a long and complex process. East PCB make it so easy:
1, Fill on line or Email, Attached your design files (Gerber files, drill and readme file in a zip format ) and your quotation request.
2, Within 8 hours, you’ll receive the detailed and exact quotation that include PCB information and PCB price. If you are interesting with the quotation, you can send Purchase Order or Email tell us.
3, We’ll review your design files and start your job once get your payment.
then, all you need to do is waiting for the delivery person ringing your door.
4, You can payment by PayPal, Master, Visa or Western Union.
pls payment by Bank if you going to mid or big order.
5, DHL, FeDex, UPS, TNT are our shipping partner, usually only 2-3 days to USA, Canada, Australia, 3-4 days to France, England, Italy etc Europe country.
All of PCB boards will be 100% E-test
>for PCB Prototype, the Flying Probe test is Free.
>for low volume PCB production, the E-testing is free, but the leadtime will be add 2-3days.
>for mid or big PCB production, need Fixture Test and add cost, please also do not worry, it only charge once.
>In rare circumstances that some of boards not pass the testing, we will remake new boards to meet the order quantity, this will delay shipment 2-3 days.
